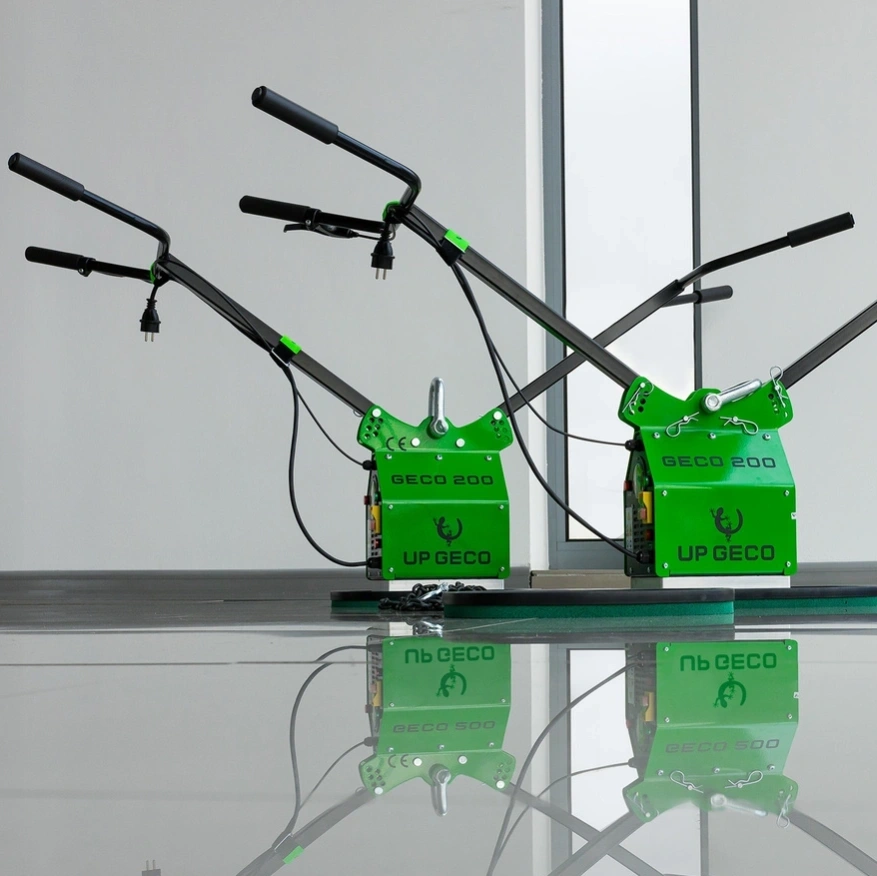

The GECO 200 Vacuum Lifting Attachments was developed for the efficient and safe

handling of even highly porous materials.

GECO 200 ensures safety, speeds up work, saves time and money

The set includes:

    ⦁ GECO 200 Vacuum gripper

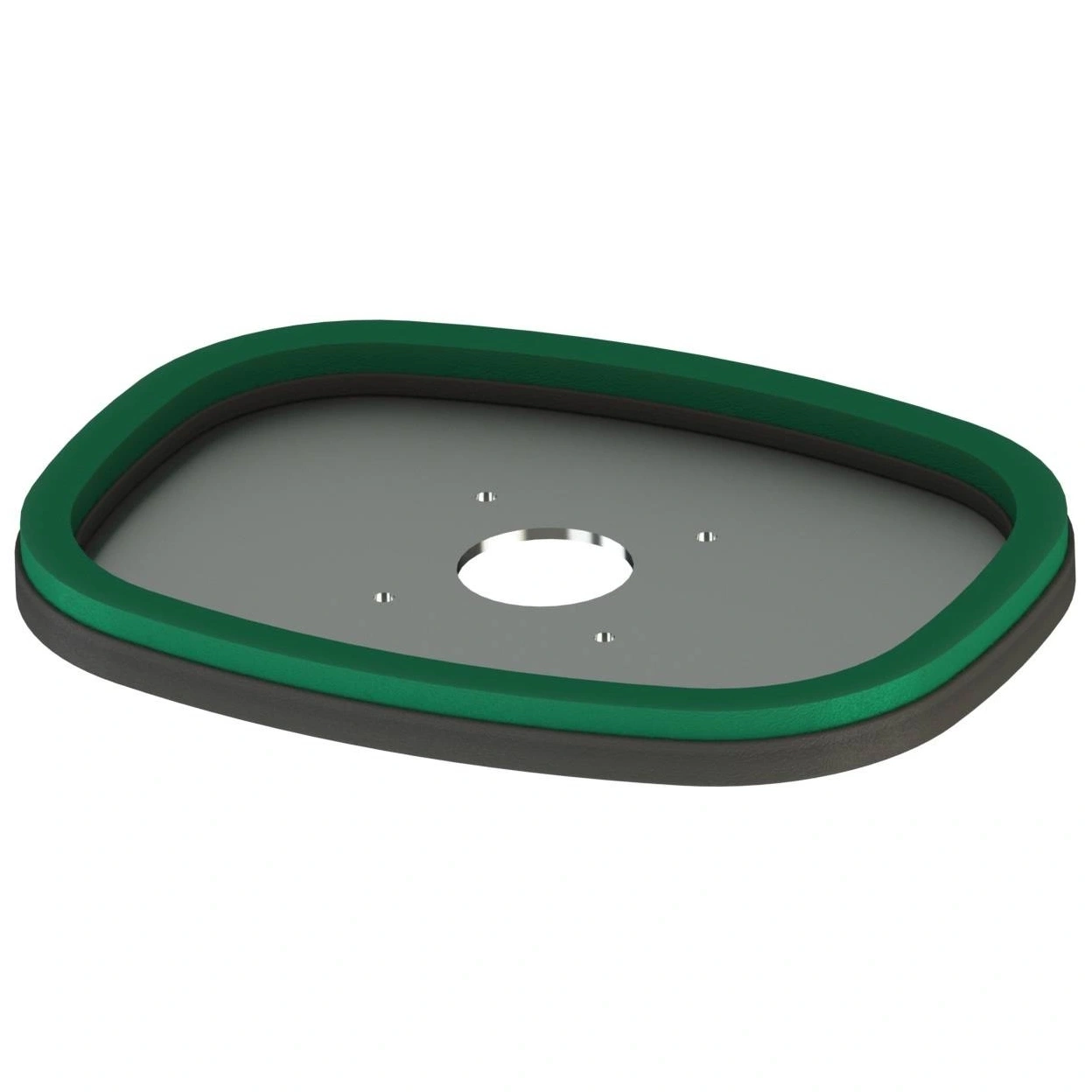

    ⦁ Suction plate - lifting capacity up to 100 kg

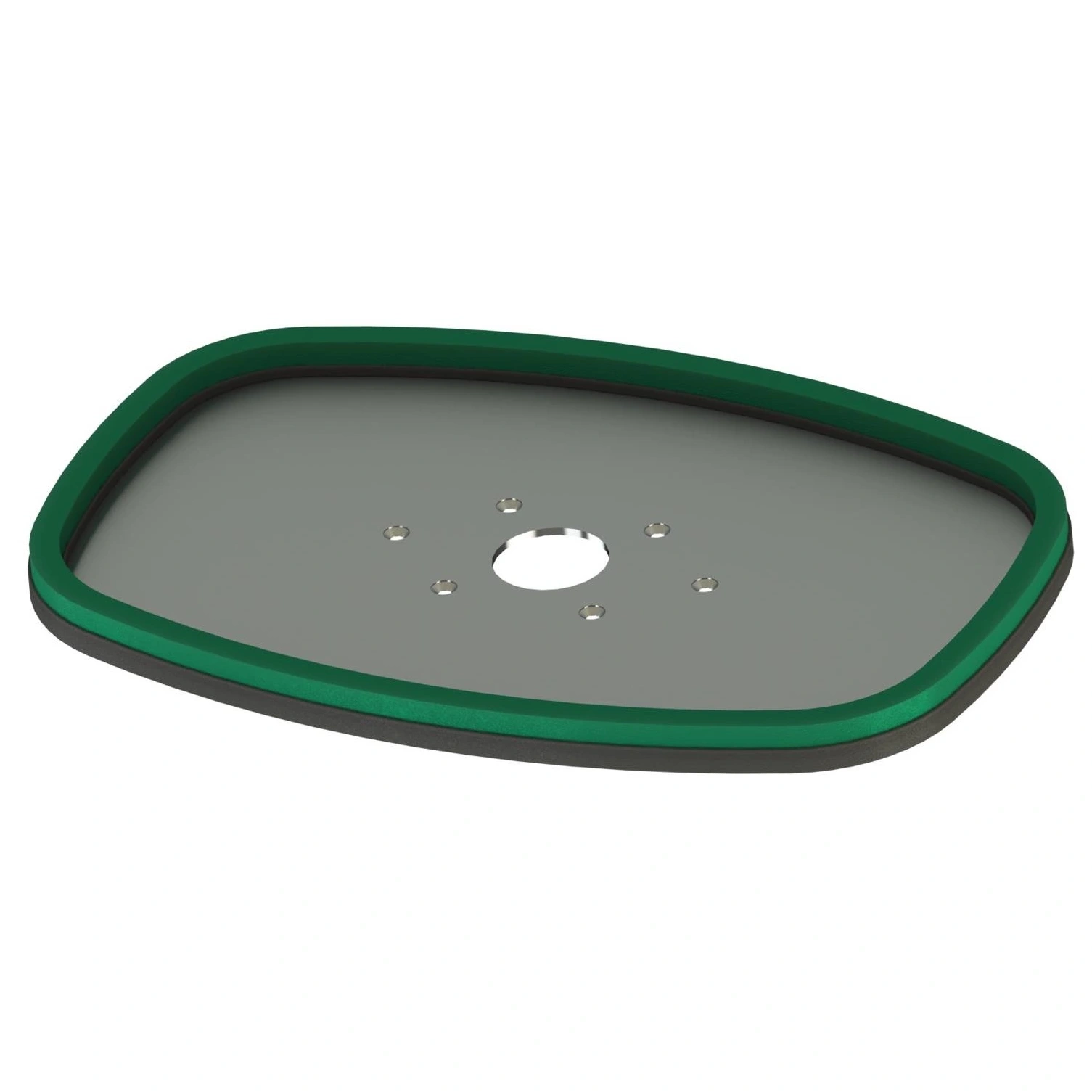

    ⦁ Suction plate - lifting capacity up to 200 kg
    ⦁ Two handles
    ⦁ Load securing chain
    ⦁ Suction cup release lever
    ⦁ Power cord

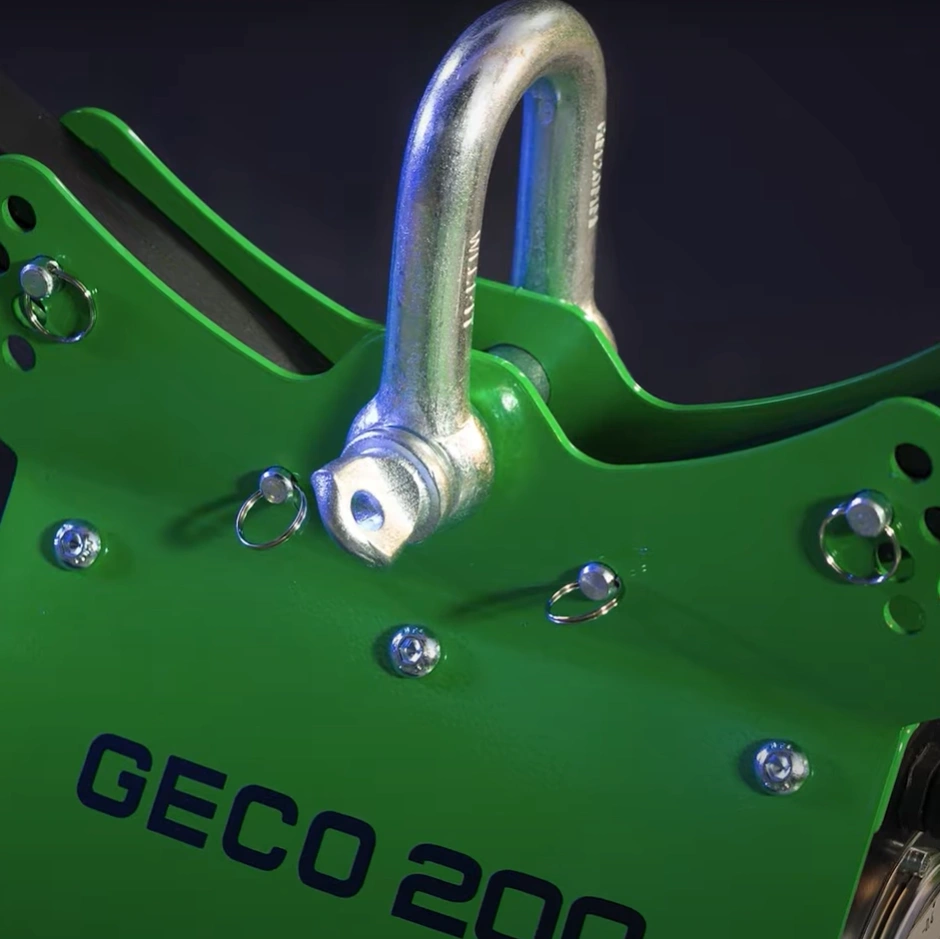

    ⦁ Long reach shackle
    ⦁ Velcro to hold the cord in a comfortable position

How it works / Application:

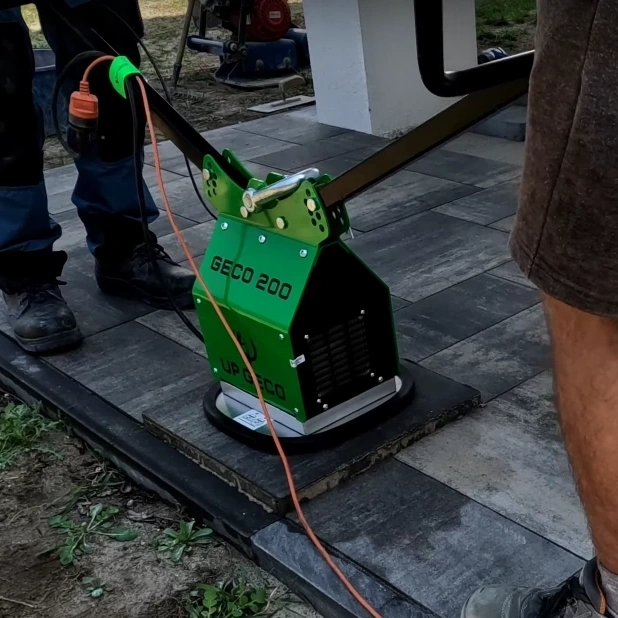

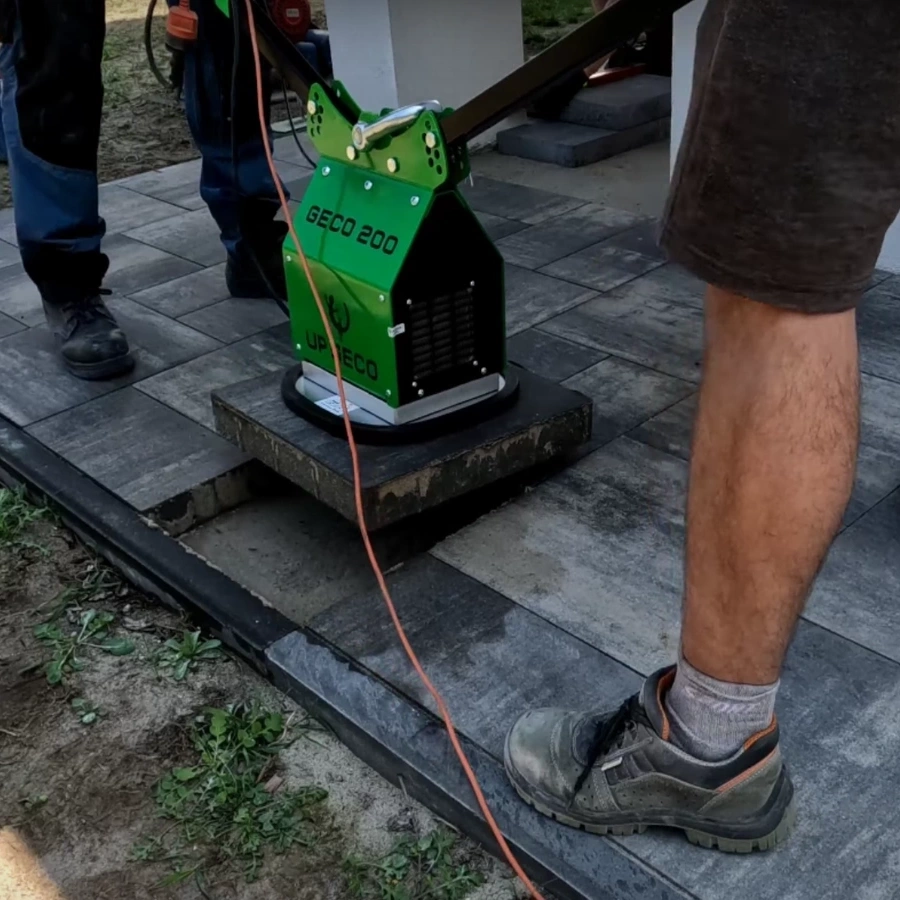

GECO 200 grip is activated at the touch of a button. The vacuum gripper is lifted by two people by the handles, then lowered onto the target piece that has to be moved. The piece is automatically sucked by the suction plate and we can move it to its intended placement location. We then lover the piece and release suction by pressing the lever located near the handle. Adjustable handles allow lifting and handling with less strain on the musco-skeletal system.

Benefits:

    ⦁ Weighs only 18 kg - the lightest gripper on the market,

    ⦁ Robust design,

    ⦁ Replaceable suction cups allow the handling of concrete slabs, granite slabs, kerbstones of different and non-standard sizes,  even weighing          200 kg,

    ⦁ Includes two suction plates with a lifting capacity of 100 kg and 200 kg,

    ⦁ Make your work radical faster and easier,

    ⦁ Extremely fast grip time 0.5s, release time 0.3s,

    ⦁ Compatible with UP GECO accessories,

    ⦁ The turbine, with a maximum power of 1500W and three-stage compression, generates a vacuum of 35, and will lift a 200 kg piece even if it         is porous or has an exposed aggregate structure. It is also lightweight and works using standard 230V voltage,

    ⦁ Independent adjustment of each handle allows ergonomic work for operators of different heights and when working on stairs,

    ⦁ The vacuum unit also improves work ergonomics by minimising the risk of significant back strain or accidents,

    ⦁ Using a GECO 200 vacuum grip ensures safety, speeds up work, saves time and money.

     Technical specification:

Dimensions:

  Made in EU
