GECO L4.7 Paver Screed - Professional Tool for Surface Profiling

GECO L4.7 Paver Screed - Professional Tool for Surface Profiling

The paver screed, also known as the profiling screed GECO L96-470, is an indispensable tool for accurately leveling surfaces on squares, parking lots, sports fields, and streets. Our paver screeds enable precise terrain leveling

Brand

Steel thickness

Height adjustment

0-19 cm

Working width

0,96 m -4,7 m

Weight

Moduł główny 45 kg

+1 Moduł rozszerzający 56 kg

+ 2 Moduł rozszerzający 67 kg

Description

GECO L96-470 Paver Screed - Professional Tool for Surface Profiling

The GECO L47 paver screed is an innovative, professional tool designed for precise leveling and preparing the substrate for paving surface installation. With its modular design and durable materials, the GECO L47 ensures the highest quality finish and significantly speeds up the substrate preparation process.

Key Features of the GECO L96-470 Paver Screed:

Modular Design: Three main modules and two extension modules allow the working width to be adjusted from 0.96 to 4.7 meters, making it extremely versatile.
Height Adjustment: Two carts with smooth height adjustment allow the scraping modules to be lowered by up to 19 cm below the level, ensuring perfect leveling.
Solid Construction: High-strength S355 steel with powder coating guarantees corrosion resistance and longevity.
Ease of Operation: Chains with handles allow precise guidance and easy operation of the tool, even for less experienced users.

Range and Weight:

Main modules: 960 mm – 2760 mm, 45 kg
+1 extension module: 1930 mm – 3740 mm, 56 kg
+2 extension modules: 2900 mm – 4720 mm, 67 kg

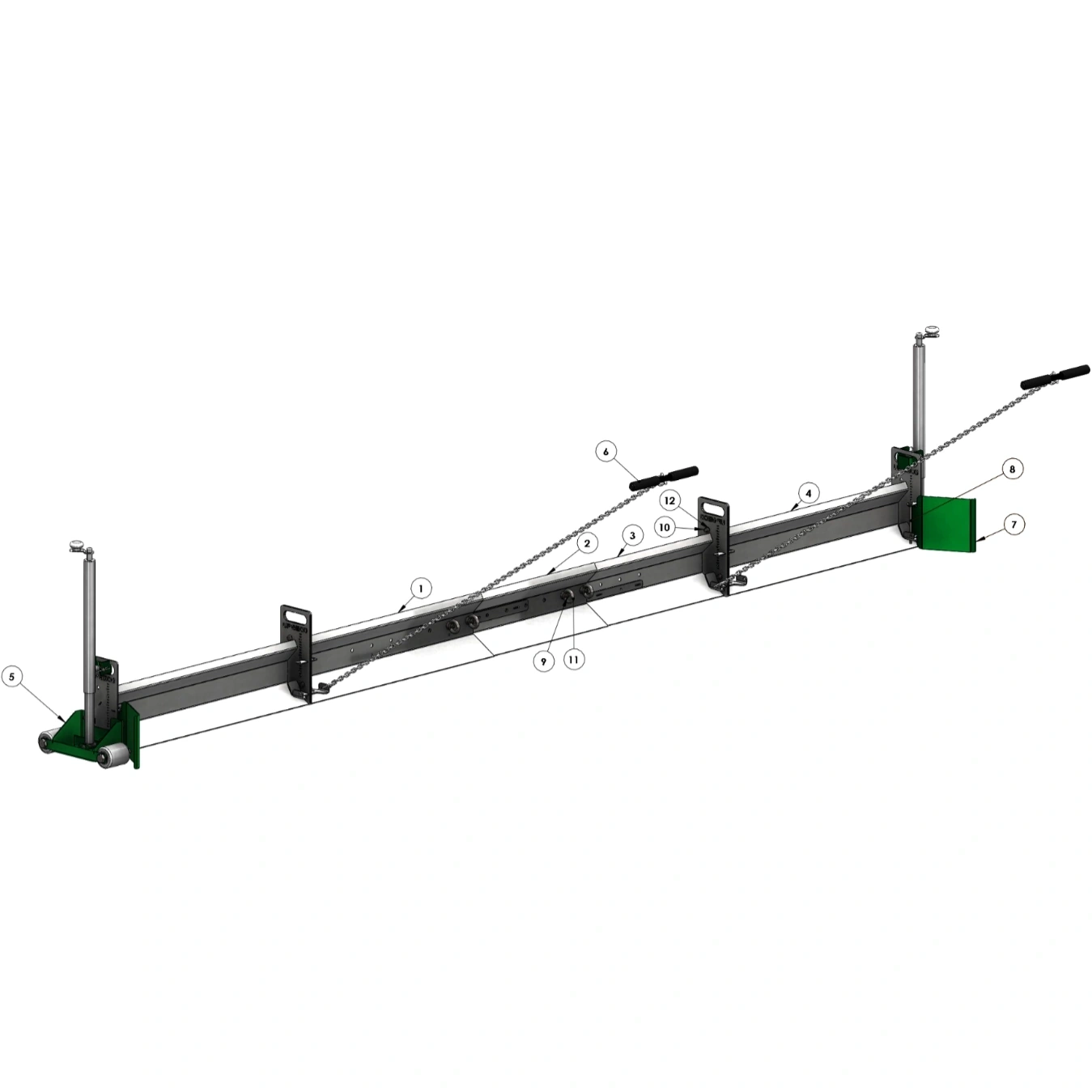

Set Includes:

1. Left module - 1 piece
2. Middle module - 1 piece
3. Right module - 1 piece
4. Extension module - 2 pieces
5. Cart - 2 pieces
6. Chain with handle - 2 pieces

7. Side wing - 2 pieces
8. Hex head bolt M8x150 - 2 pieces
9. Hex head bolt M12x35 - 4 pieces
10. Hex head bolt M12x25 - 6 pieces
11. Nut with ear M12 - 4 pieces
12. Self-locking nut M12 - 6 pieces

Advantages of the GECO L96-470 Paver Screed:

Versatility: Ideal for both large and small paving projects.
Durability: Exceptional material quality ensures longevity and weather resistance.
Efficiency: Quick and precise substrate profiling saves time and delivers excellent results.
Ease of Use: Intuitive width and height adjustment allows for seamless operation.

1. What are the advantages of using the GECO L96-470 paver screed?

The GECO L47 screed enables precise leveling of the substrate, significantly impacting the durability and aesthetics of the laid surface. Its sturdy construction ensures corrosion resistance and long lifespan.

2. Is the GECO L96-470 paver screed suitable for large paving projects?

Yes, thanks to its modular design and adjustable width, the GECO L4.7 screed is ideal for both large and smaller paving projects.

3. What materials can be used with the GECO L96-470 paver screed?

The paver screed is designed for spreading materials such as sand, gravel, or concrete bedding.

Choosing the GECO L96-470 paver screed for substrate profiling means investing in a tool that ensures maximum efficiency and ease of use. With its robust construction and innovative technological solutions, the GECO L96-470 screed will become an indispensable part of your equipment.
