Adjustable suction plate for curbs max 120/200 KG
Adjustable suction plate for curbs max 120/200 KG
Adjustable suction plate for curbs max 120/200 KG
Adjustable suction plate for curbs max 120/200 KG
Adjustable suction plate for curbs max 120/200 KG
Adjustable suction plate for curbs max 120/200 KG
Adjustable suction plate for curbs max 120/200 KG
Adjustable suction plate for curbs max 120/200 KG
Recommended
Series: GECO 200

Adjustable suction plate for curbs max 120/200 KG

  • New from UP GECO! Adjustable suction plate for curbs. It is ideal for 12-15 cm curbs.
668,23 €
net / szt.
822,00 €
incl. VAT / szt.
Regular price / szt.
You can also buy using:
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Product sold out
You will receive an email notification from us when the product is available again.
Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.
Contact details entered above are not used to send newsletters or other advertisements. When you sign up to be notified, you hereby agree to receive only a one-time notification of a product re-availability.

Dostępne w kolekcji

Brand
Series

Description

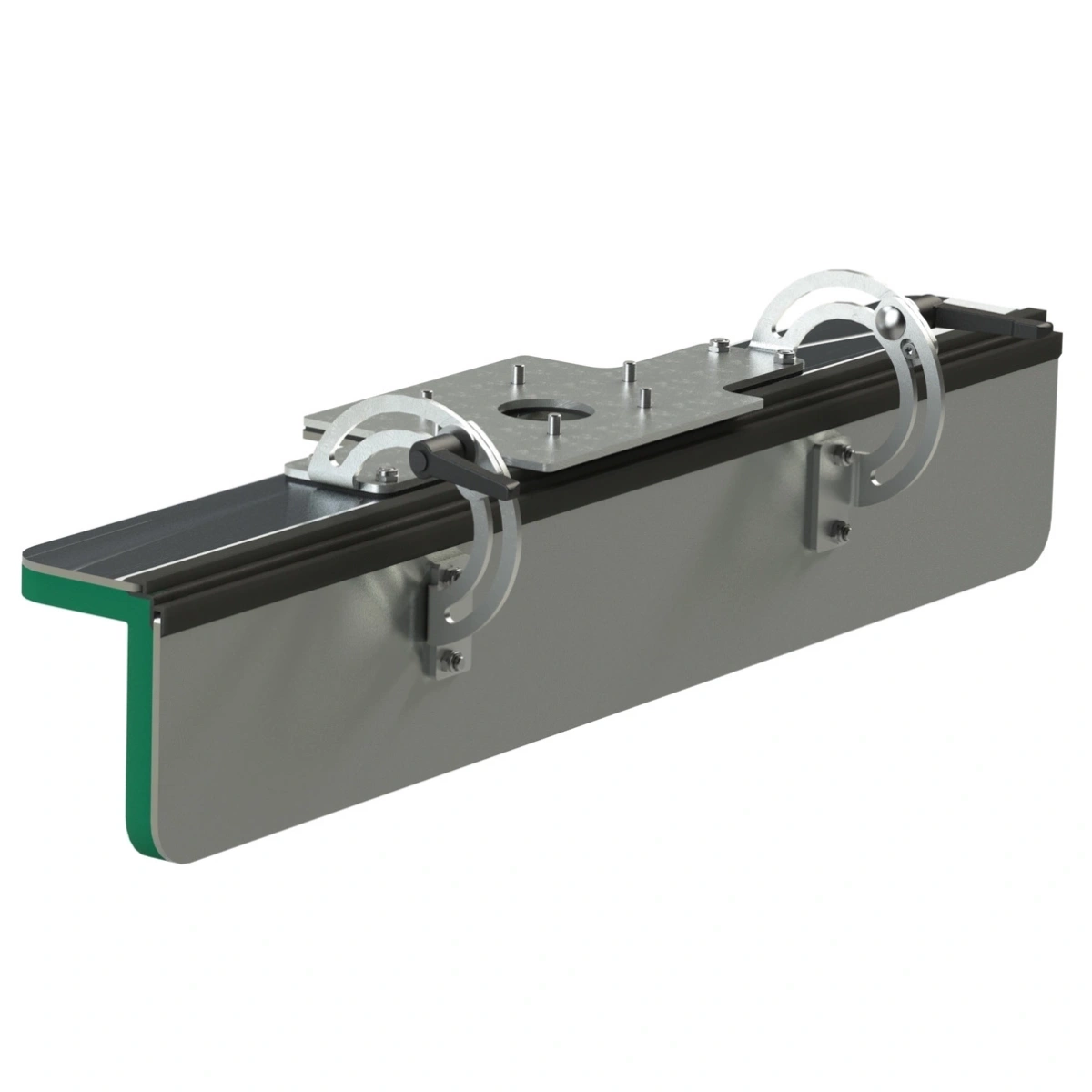

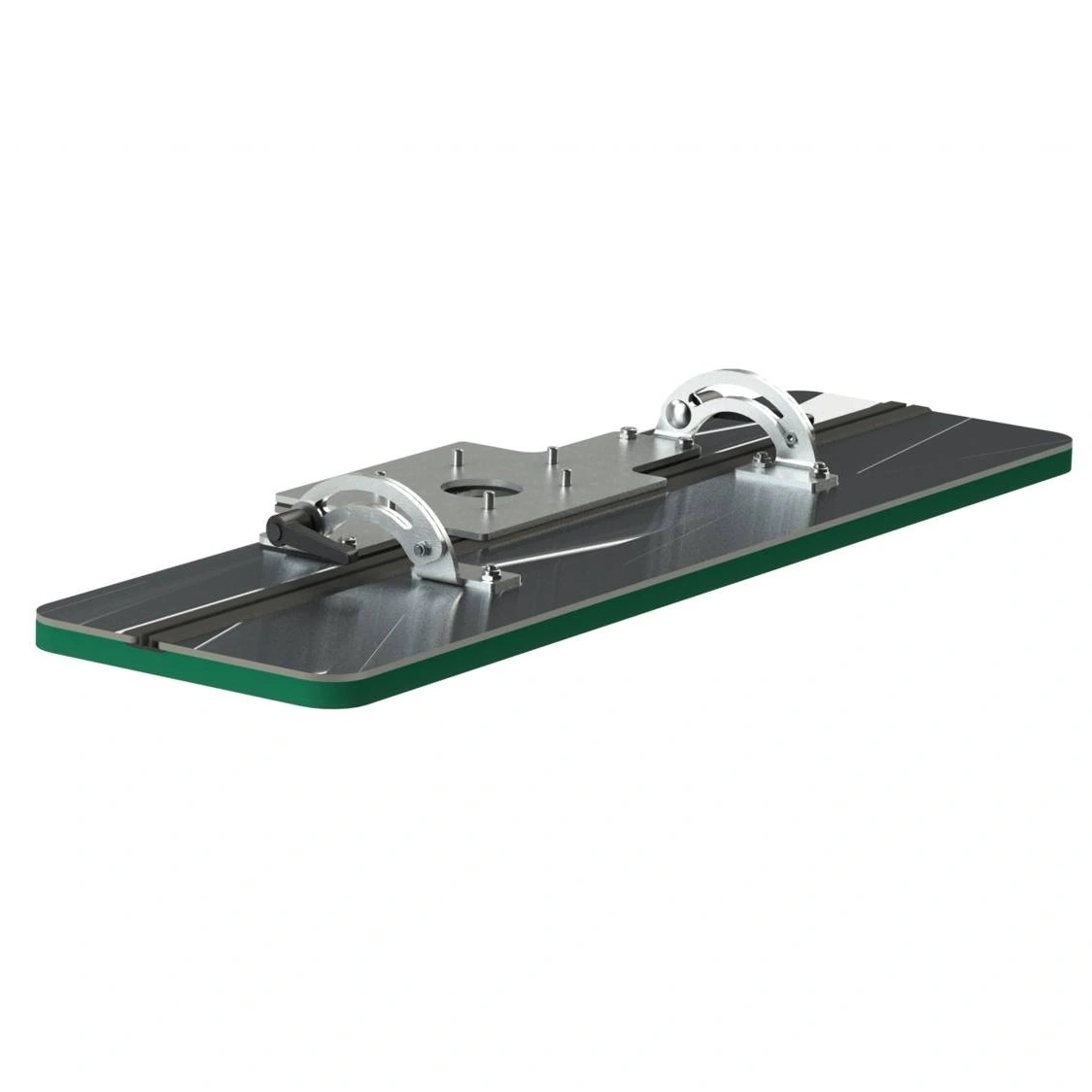

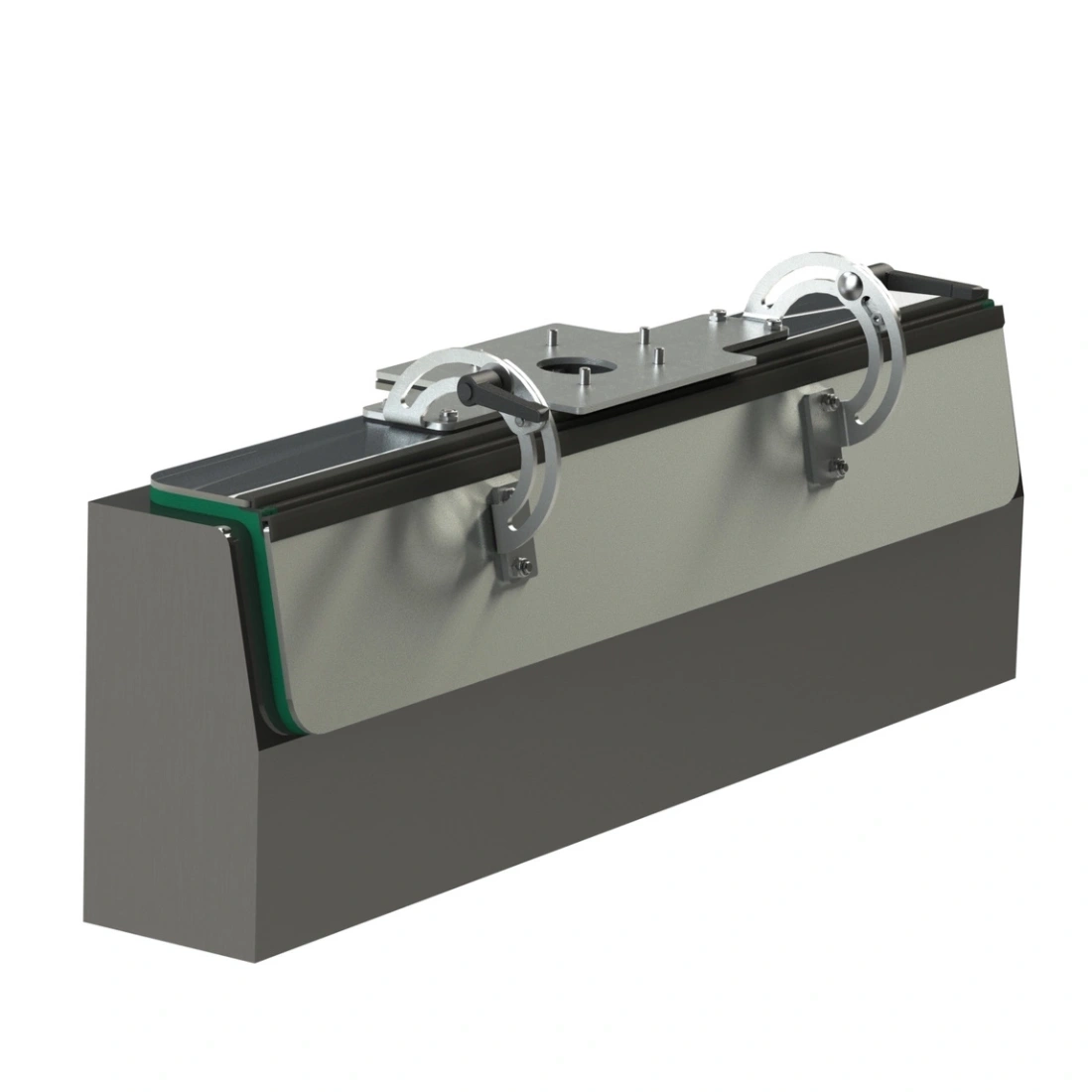

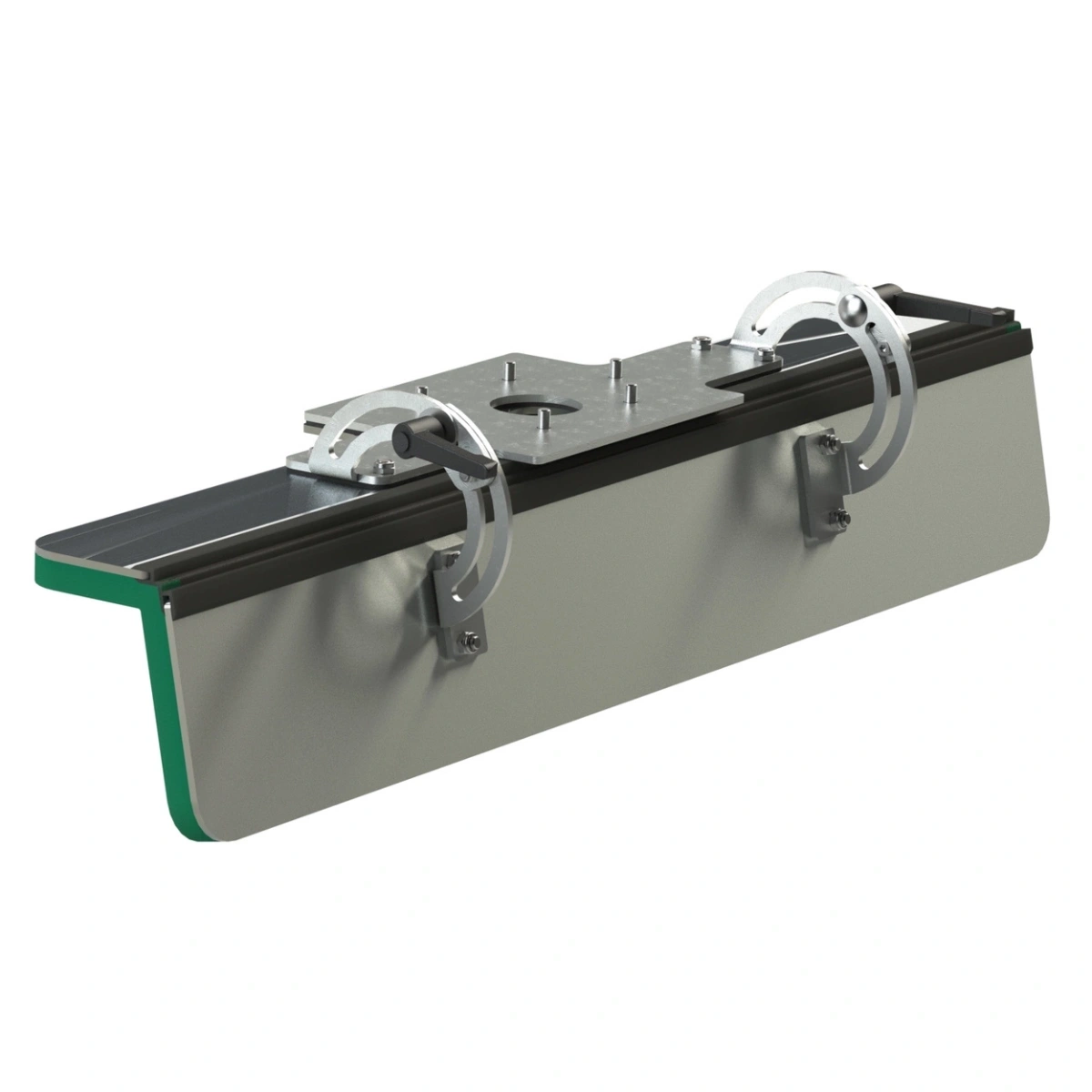

Adjustable suction plate for lifting curbstones

Engineered for precise adjustment of the working angle to match specific installation conditions.

Its design allows smooth angle regulation between 90° and 180°, facilitating efficient curbstone placement along walls, retaining edges, and pavement borders.

Adjustable GECO suction plate

The adjustable angle mechanism enables the operator to position the lifter according to on-site conditions without additional adapters or extensions. This significantly speeds up work, especially on finishing sections where conventional tools often fall short.

The suction plate for lifting curbstones is equipped with a vacuum system rated up to 120 / 200 kg, depending on the version. This allows safe handling of most standard road curbs and precast concrete elements while minimizing the risk of material shifting during movement.

Suction plate for curbstones Vacuum level
0.25 bar 0.3 bar 0.35 bar 0.40 bar
Lifting capacity 120 kg 150 kg 180 kg 200 kg



The powder-coated steel construction ensures resistance to mechanical damage and weather exposure on the job site. Mounting to the GECO 200 vacuum lifter requires no tools – the operator can change accessories independently in just a few minutes.

This solution is ideal for pedestrian paths, traffic lanes, and finish work where precision and repeatability of installation are critical. The suction plate for lifting curbstones performs best when mechanical contact with the surface must be minimized and the geometry of installed elements must remain consistent.
