Kerbstone Vacuum Lifter GECO 300 BS – kerbstone set
- Set exclusively for kerbstones, edging and cable ducts. GECO 300 BS with adjustable 90–180° suction plate and chain sling WLL 1.12 t. Capacity 180 kg, for excavators and wheel loaders.
Kerbstone Vacuum Lifter GECO 300 BS – kerbstone set
Kerbstone Vacuum Lifter GECO 300 BS – kerbstone set
Intended use – kerbstones only
The set is intended exclusively for ground-level laying of kerbstones, edging, boundary stones and cable ducts made of concrete or granite.
The set is not intended for paving stones, patio slabs or other building materials. Standard GECO sets with universal suction plates serve those applications.
The device may only be used for ground-level laying of kerbstones.
Set includes

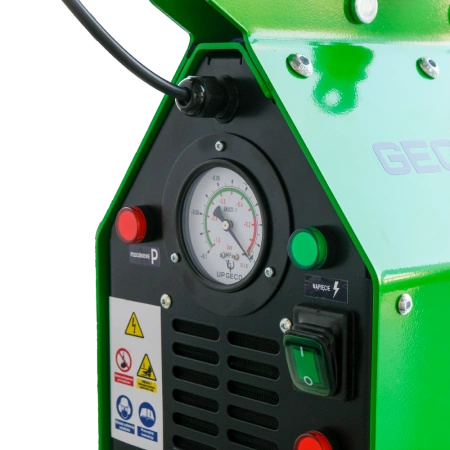

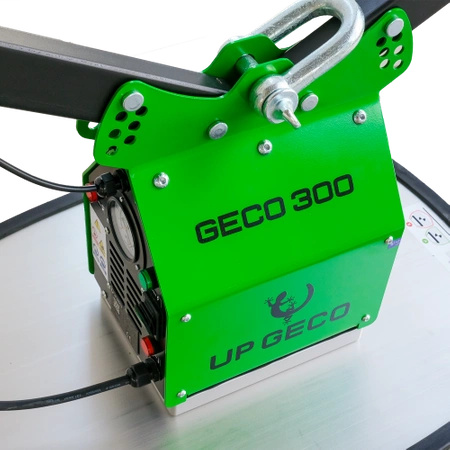

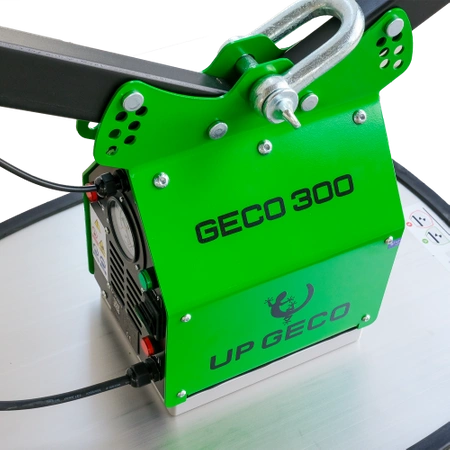

- Vacuum lifter GECO 300 (230 V, 1850 W, 35 kPa)

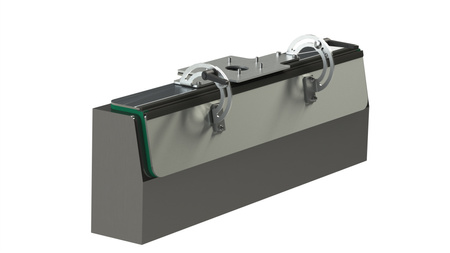

- Adjustable kerbstone suction plate (90–180° adjustment, kerbs 12–15 cm)
- Chain sling WLL 1.12 t, 3.0 m long, with shortening clevis hook
- Load securing chain
The set does not include universal suction plates for pavers and slabs.
Technical data
| Parameter | Value |
|---|---|
| Device weight | 18 kg |
| Power supply | 230 V / 50 Hz |
| Turbine power | 1850 W |
| Working vacuum | 35 kPa (0,35 bar) |
| Permissible capacity with kerbstone plate | 180 kg |
| Kerbstones handled (width) | 12–15 cm |
| Plate angle adjustment | stepless, 90–180° |
| Chain sling – WLL | 1,12 t (1120 kg) |
| Chain length | 3,0 m |
| Grip / release time | 0,5 s / 0,3 s |
Kerbstone plate lifting capacity
| 0,25 bar | 0,30 bar | 0,35 bar | 0,40 bar |
|---|---|---|---|
| 120 kg | 150 kg | 180 kg | 200 kg |
At a working vacuum of 35 kPa (0.35 bar) the permissible capacity is 180 kg.
Applications
Laying road and pavement kerbs, lawn edging, boundary stones and cable ducts. Operated from a carrier – excavator, mini excavator or wheel loader that takes the weight of the stone.
Working safety
The chain sling has a working load limit of WLL 1.12 t (1120 kg) – many times the maximum load of the kerbstone plate (180 kg). The limiting factor is always the vacuum, never the sling.
The guide handles let the operator position the kerbstone without entering the danger zone beneath the excavator boom or the loader mast.
Always use the load securing chain when working suspended.
