Hydraulic Kerbstone Vacuum Lifter GECO 300 PRO BS – kerbstone set
- Set exclusively for kerbstones, edging and cable ducts. GECO 300 PRO BS with adjustable 90–180° suction plate and chain sling WLL 1.12 t. Capacity 250 kg, for excavators and wheel loaders.
Hydraulic Kerbstone Vacuum Lifter GECO 300 PRO BS – kerbstone set
Hydraulic Kerbstone Vacuum Lifter GECO 300 PRO BS – kerbstone set
Intended use – kerbstones only
The set is intended exclusively for ground-level laying of kerbstones, edging, boundary stones and cable ducts made of concrete or granite.
The set is not intended for paving stones, patio slabs or other building materials. Standard GECO sets with universal suction plates serve those applications.
The device may only be used for ground-level laying of kerbstones.
Set includes

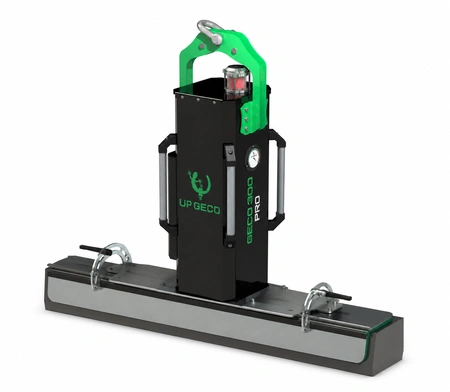

- Vacuum lifter GECO 300 PRO (45 kPa)
- Adjustable kerbstone suction plate (90–180° adjustment, kerbs 12–15 cm)
- Chain sling WLL 1.12 t, 3.0 m long, with shortening clevis hook
- Load securing chain
- Hydraulic hoses – to be purchased separately
The set does not include universal suction plates for pavers and slabs.
Technical data
| Parameter | Value |
|---|---|
| Device weight | 38 kg (with suction plate) |
| Power supply | hydraulic, from the carrier |
| Minimum oil flow | 20 l/min |
| Working / max. pressure | 150 bar / 200 bar |
| Working vacuum | 45 kPa (0,45 bar) |
| Permissible capacity with kerbstone plate | 250 kg |
| Kerbstones handled (width) | 12–15 cm |
| Plate angle adjustment | stepless, 90–180° |
| Control | from the operator cab |
| Standard conformity | EN 13155 |
Kerbstone plate lifting capacity
Thanks to the higher vacuum of the hydraulic system (45 kPa) the same plate lifts 250 kg – including heavy granite kerbs.
Applications

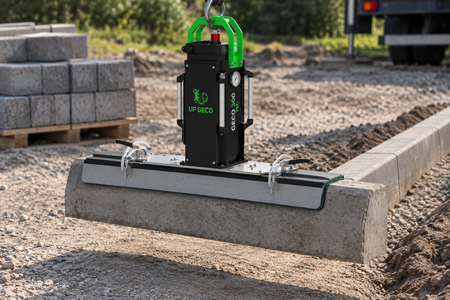

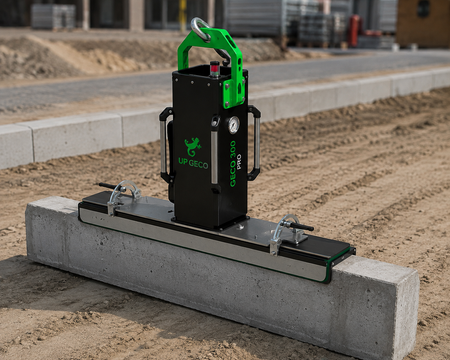

Laying road and pavement kerbs, lawn edging, boundary stones and cable ducts. Operated from a carrier – excavator, mini excavator or wheel loader that takes the weight of the stone.
Working safety
The chain sling has a working load limit of WLL 1.12 t (1120 kg) – many times the maximum load of the kerbstone plate (250 kg). The limiting factor is always the vacuum, never the sling.
The guide handles let the operator position the kerbstone without entering the danger zone beneath the excavator boom or the loader mast.
Always use the load securing chain when working suspended.
