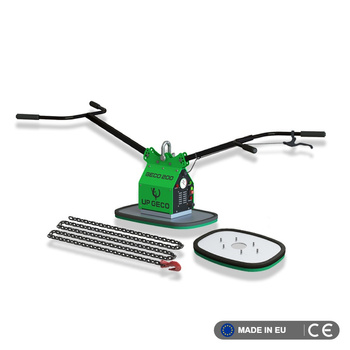

GECO Vacuum Lifter Vacu-200 Set Suction Plate 200 kg (600x375)
GECO 200 Vacuum paver lifter - Up Geco Vacuum Gripper For Paving

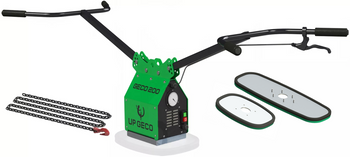

GECO Vacuum Lifter Vacu-200 Set 2x Suction Plate

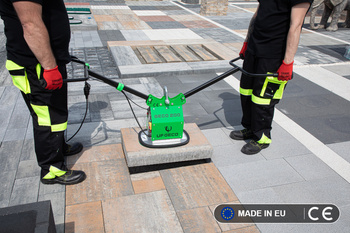

GECO Vacuum Lifter Vacu-200 Set Suction Plate 100 kg
GECO 200 Vacuum paver lifter - Up Geco Vacuum Gripper For Paving
GECO Vacuum Lifter Vacu-200 Set 2x Suction Plate
GECO Vacuum Lifter Vacu-200 for Carrying and Laying Paving Stones (+ 4x Suction Plate)

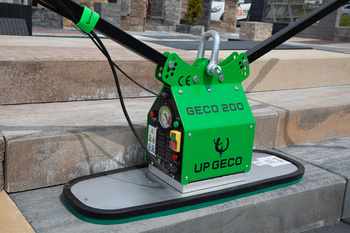

GECO Vacuum Lifter Vacu-200 Set Suction Plate 200 kg
GECO 200 Vacuum Lifter Collection
GECO 300 PRO Hydraulic Vacuum Gripper for Excavators and Construction Equipment
GECO 300 Collection paving grab + accessories

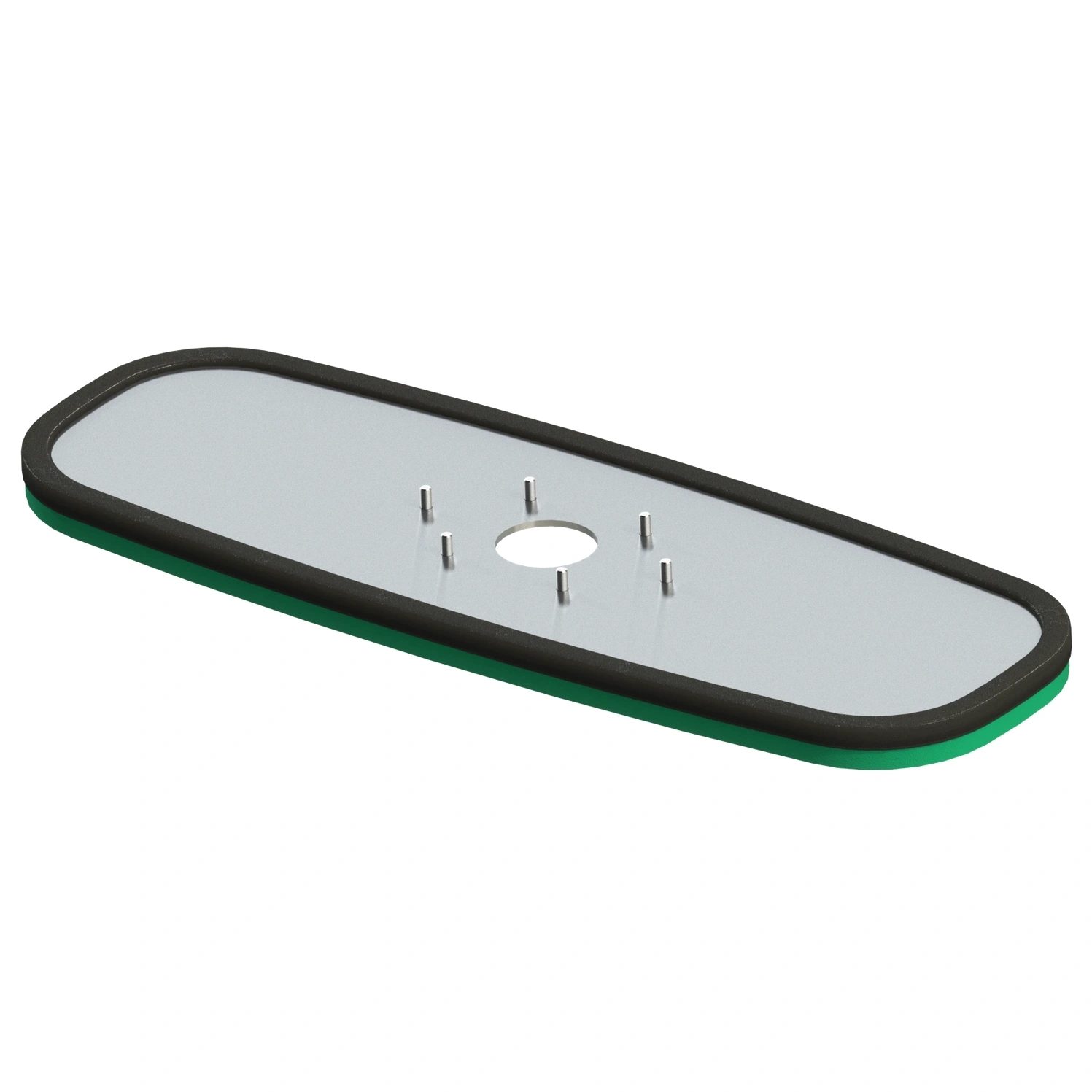

Up Geco Suction plate 270x780 mm with a lifting capacity of 200/320 kg narrow
270×780 Suction Plate for Up Geco Vacuum Lifter up to 320 kg
Suction pad for Geco 200 and 300 series machines in rectangular format. Ideal for handling long and narrow slabs commonly used in residential construction, stonemasonry, and terrace installations.
Thanks to a unique sealing mechanism, it is perfectly suited for lifting any flat or porous surface. Polished granite slabs, open-structure granite, stair blocks, concrete slabs, and even natural stones adhere with high holding force.
| Plate size | Vacuum level | |||
|---|---|---|---|---|
| 0.25 bar | 0.3 bar | 0.35 bar | 0.40 bar | |
| 270×780 | 200 kg | 240 kg | 280 kg | 320 kg |
Technical specifications of Geco suction plate 780×270:
Lifting capacity – 200 / 320 kg
Dimensions – 780 × 270 mm
This narrow 270×780 mm suction plate is built for moving kerbs, steps and long concrete slabs with a GECO vacuum lifter. Its 200/320 kg capacity lets you place linear elements safely without chipping edges. EU-made, CE certified, with replaceable gaskets available from the manufacturer.
