Installing Large-Format Porcelain Tiles with UP GECO Vacuum Lifter
Installing Large-Format Porcelain Tiles with UP GECO Vacuum Lifter
Safe and precise laying of large-format tiles on terraces, driveways and steps – without risk of material damage or operator strain.
Safety
Spine protection and minimised risk of workplace injuries. Compliant with EN 13155.
Speed
Grip in 0.5 s, release in 0.3 s. Significantly reduces installation time compared to manual methods.
Precision
Adjustable handles and ergonomic design allow accurate positioning of every tile.
Versatility
Interchangeable suction pads allow work with porcelain, granite, concrete, paving stones and precast elements.
Residential terraces
Laying large-format tiles on terraces of houses and apartments. Precision without risk of cracking.
Driveways & aprons
Installing heavy concrete and porcelain tiles on garage driveways and manoeuvring areas.
Outdoor steps
GECO's adjustable handles enable comfortable work on stairs and slopes.
Gardens & public spaces
Laying paving slabs and granite tiles in gardens, around fountains and on public walkways.
Prepare the substrate
Check the flatness and load capacity of the substrate. Ensure the bonding layer (adhesive, cement screed or sand) is ready, level and flat.
Choose the model and suction pad
For tiles up to 200 kg choose GECO 200 with the 600×375 mm suction pad. For tiles up to 300 kg – GECO 300 with the 660×500 mm pad.
Connect GECO to power and start
Plug the device into a 230 V / 50 Hz outlet. Start the vacuum turbine with one button.
Apply suction to the tile
Two operators lift the device and press the suction pad flat against the top face of the tile. GECO creates 35 kPa vacuum and grips the tile in 0.5 seconds.
Transfer and precise positioning
Safely carry the tile to the target position. Adjustable handles allow ergonomic manoeuvring even in confined spaces. The safety chain prevents accidental drops.
Release the load and lay the tile
Press the release lever – the tile is released in 0.3 seconds. Check level, press the tile into position and adjust the joints. GECO is ready for the next tile.
GECO 200 – up to 200 kg
- Large-format tiles up to approx. 80×80 cm
- Paving slabs and terrace tiles
- Natural stone up to 200 kg
- Paving stones and kerbs
- Turbine 1,500 W, vacuum 35 kPa
- Device weight: only 18 kg
GECO 300 – up to 300 kg
- Extra-large tiles 100×100 cm and bigger
- Heavy concrete and granite slabs
- Precast elements up to 300 kg
- Highly porous materials
- Turbine 1,850 W (3-stage), vacuum 35 kPa
- EN 13155 compliant, weight: only 18 kg
GECO 200 – Vacuum lifter + suction pads
| Max. lifting capacity | 200 kg |
| Turbine | 1,500 W |
| Vacuum | 35 kPa |
| Grip time | 0.5 s |
| Device weight | 18 kg |
| Power supply | 230V / 50Hz |
| Suction pads included | 400×300 mm + 600×375 mm |
| Warranty | 1 year |
| EAN | 5905806907100 |
GECO 300 – Vacuum lifter + suction pads
| Max. lifting capacity | 300 kg |
| Turbine | 1,850 W (3-stage) |
| Vacuum | 35 kPa |
| Grip time | 0.5 s |
| Device weight | 18 kg |
| Power supply | 230V / 50Hz |
| Suction pads included | 500×375 mm + 660×500 mm |
| Warranty | 1 year |
| EAN | 5905806907131 |
Ready for faster and safer tile installation?
Join thousands of paving and construction companies that trust UP GECO lifters. Free shipping, 1-year warranty, Made in EU.
Recommended
GECO 200 Vacuum Lifter Collection

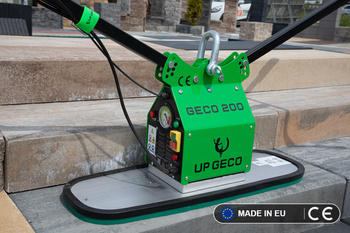

GECO Vacuum Lifter Vacu-200 Set 2x Suction Plate

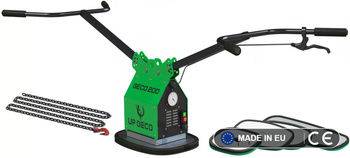

GECO Vacuum Lifter Vacu-200 for Carrying and Laying Paving Stones (+ 4x Suction Plate)

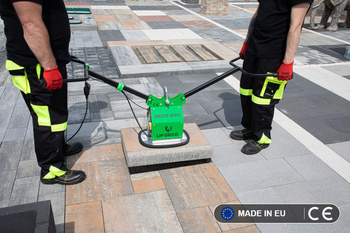

GECO Vacuum Lifter Vacu-200 Set Suction Plate 100 kg

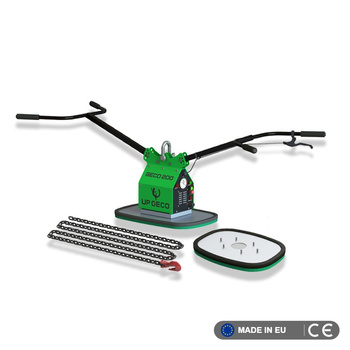

GECO Vacuum Lifter Vacu-200 Set Suction Plate 200 kg (600x375)
