Series: GECO 300
Vacuum lifter, suction cup for transporting and laying paving GECO 300 + plates
- Vacuum lifter for paving stones, concrete, and granite slabs. Fast installation, safe operation, ergonomic design. Check it out and boost efficiency!
In a set
Description

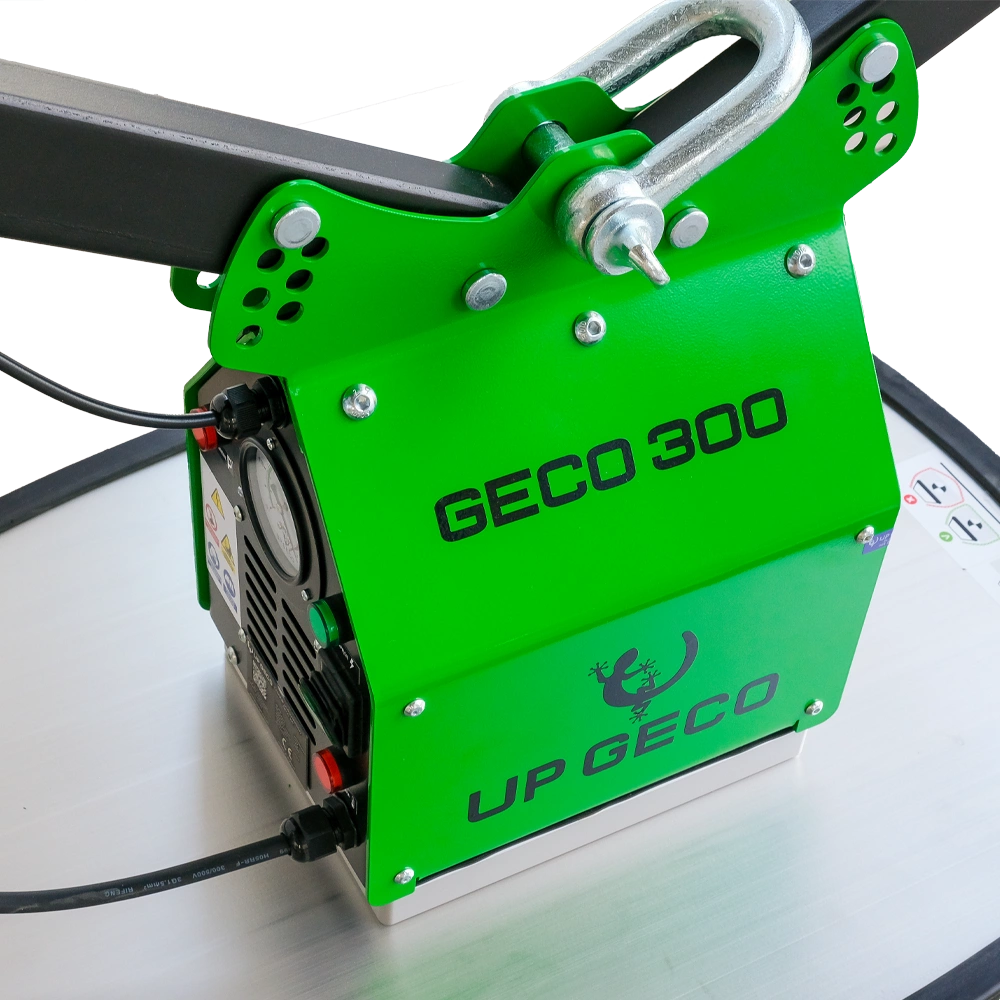

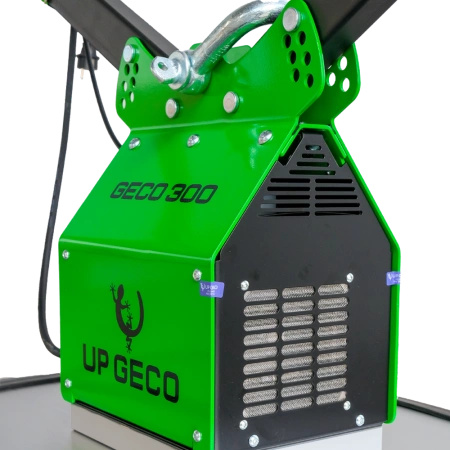

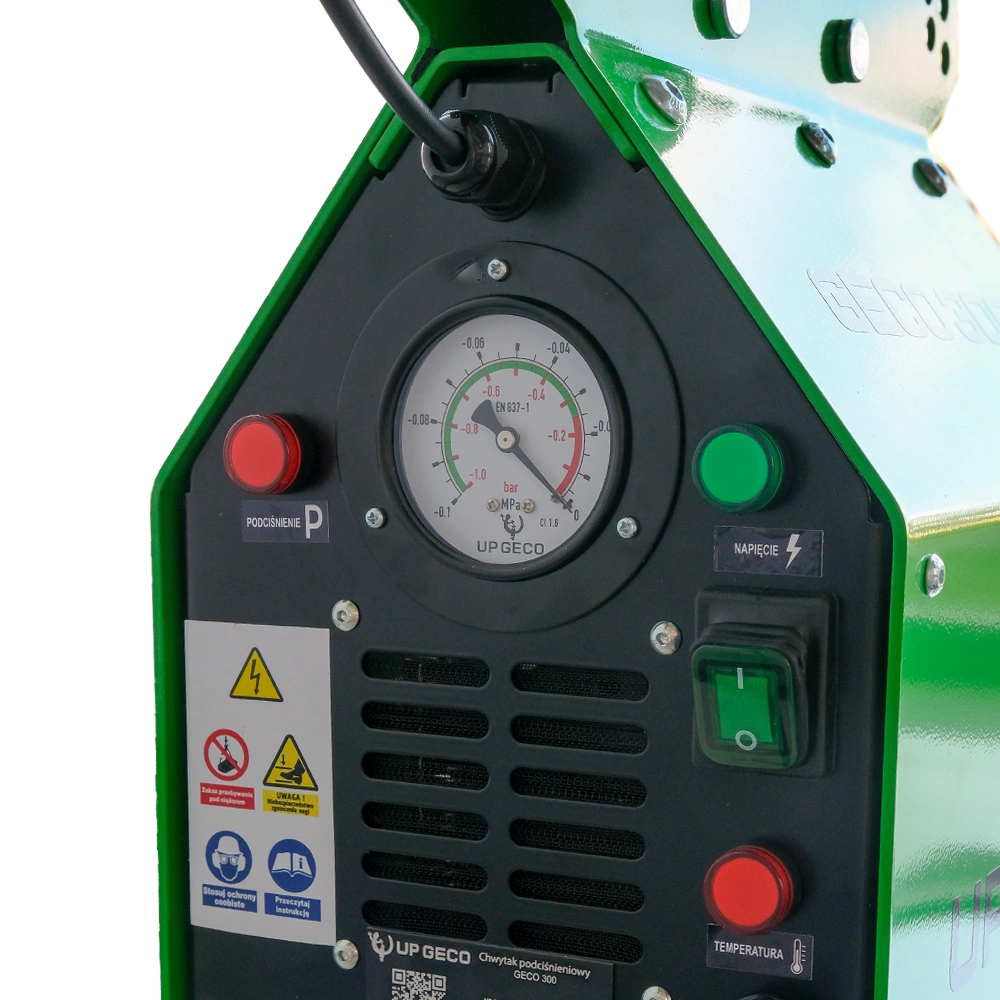

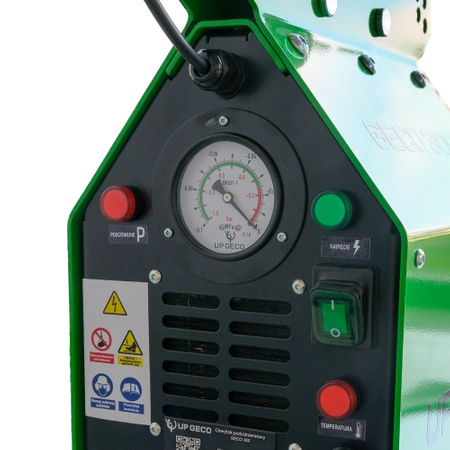

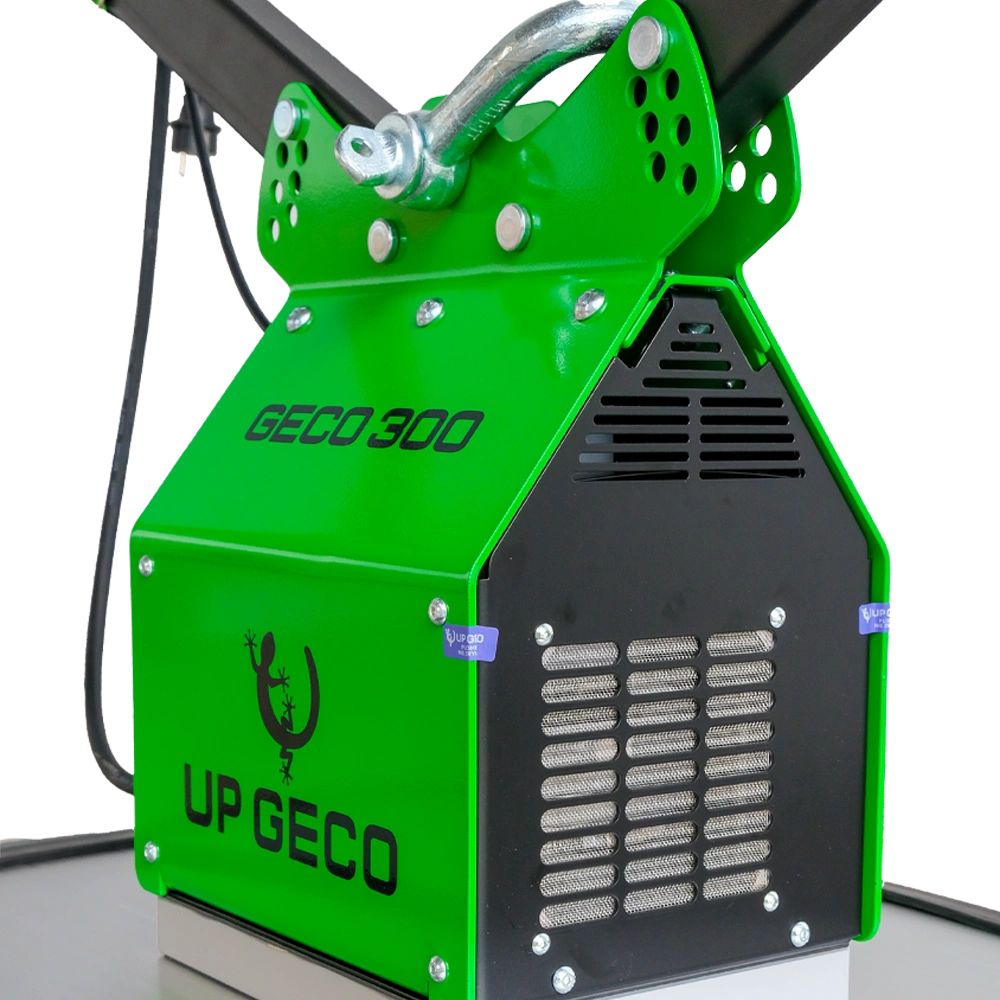

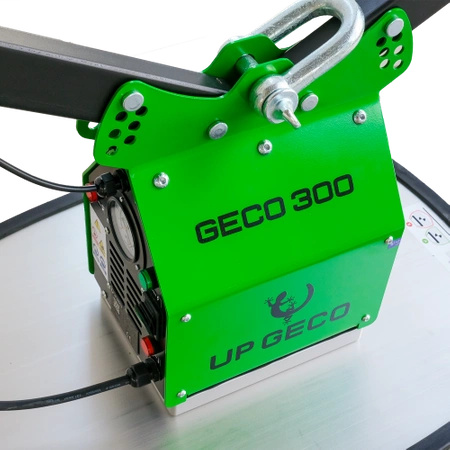

GECO 300 – Vacuum Lifter for Paving Stones and Construction Slabs
Innovative solution for handling highly porous materials
A reliable tool for efficient and safe transportation of paving stones, sidewalk slabs, granite, porcelain tiles, and precast elements. GECO 300 is an innovative vacuum lifter that significantly speeds up and facilitates work while minimizing the risk of material damage and operator strain.

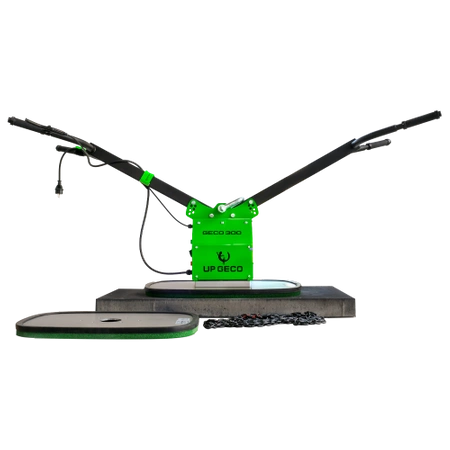

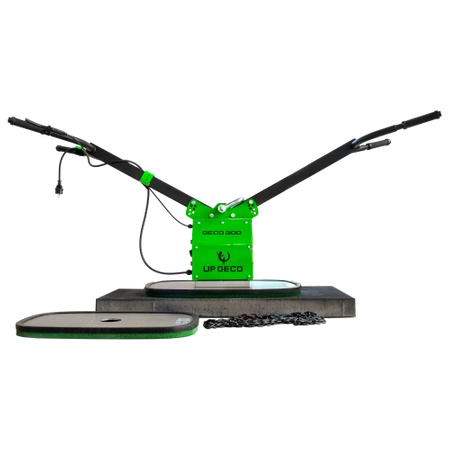

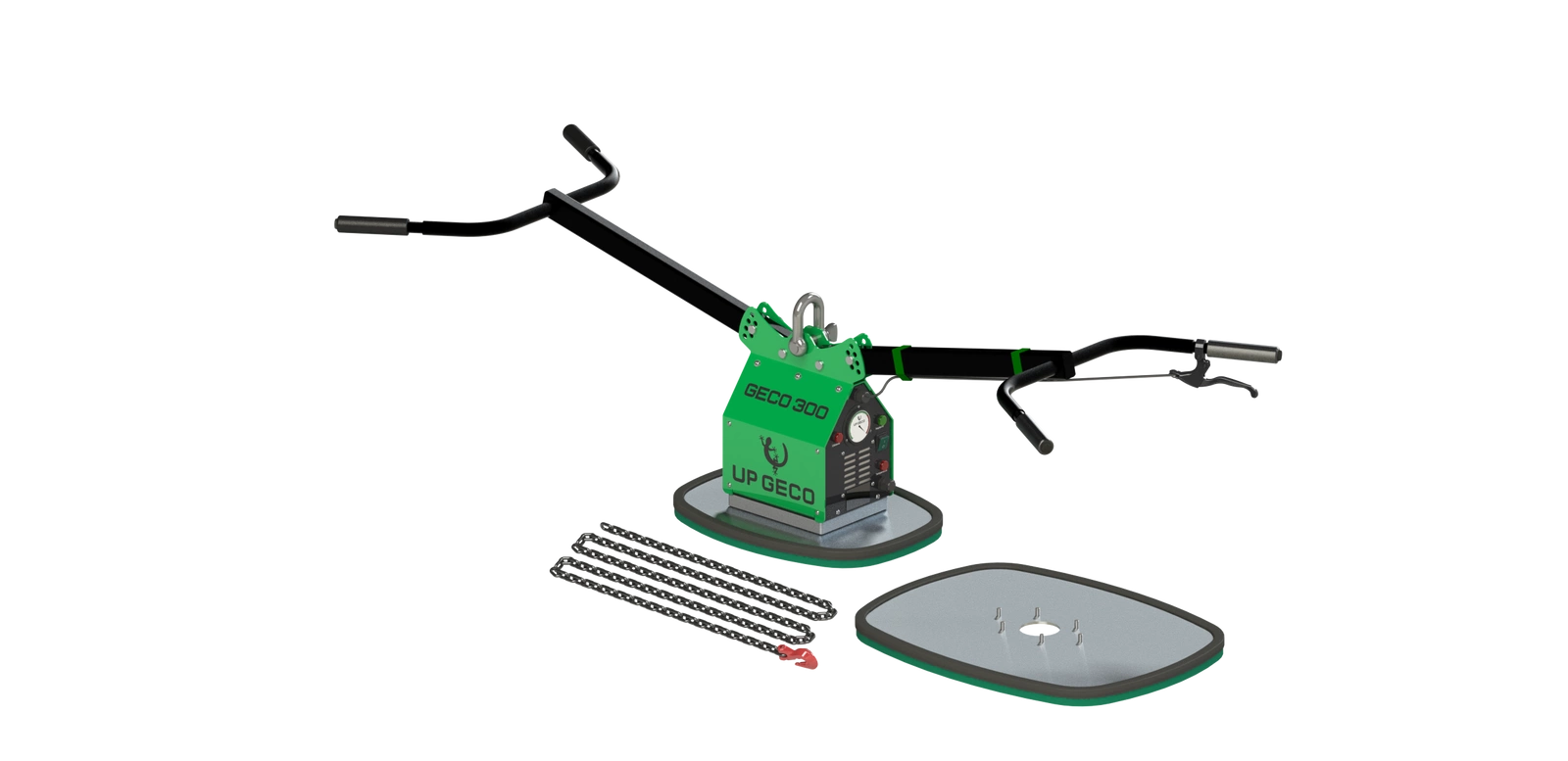

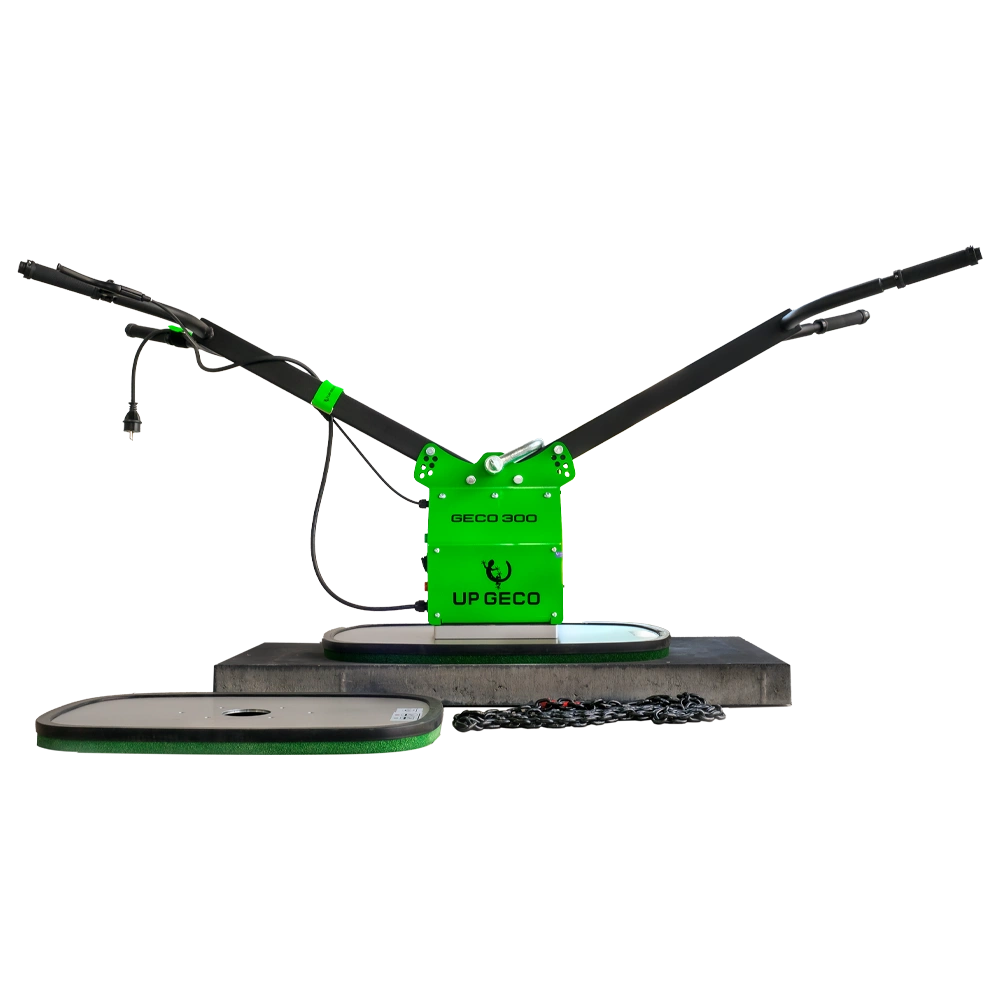

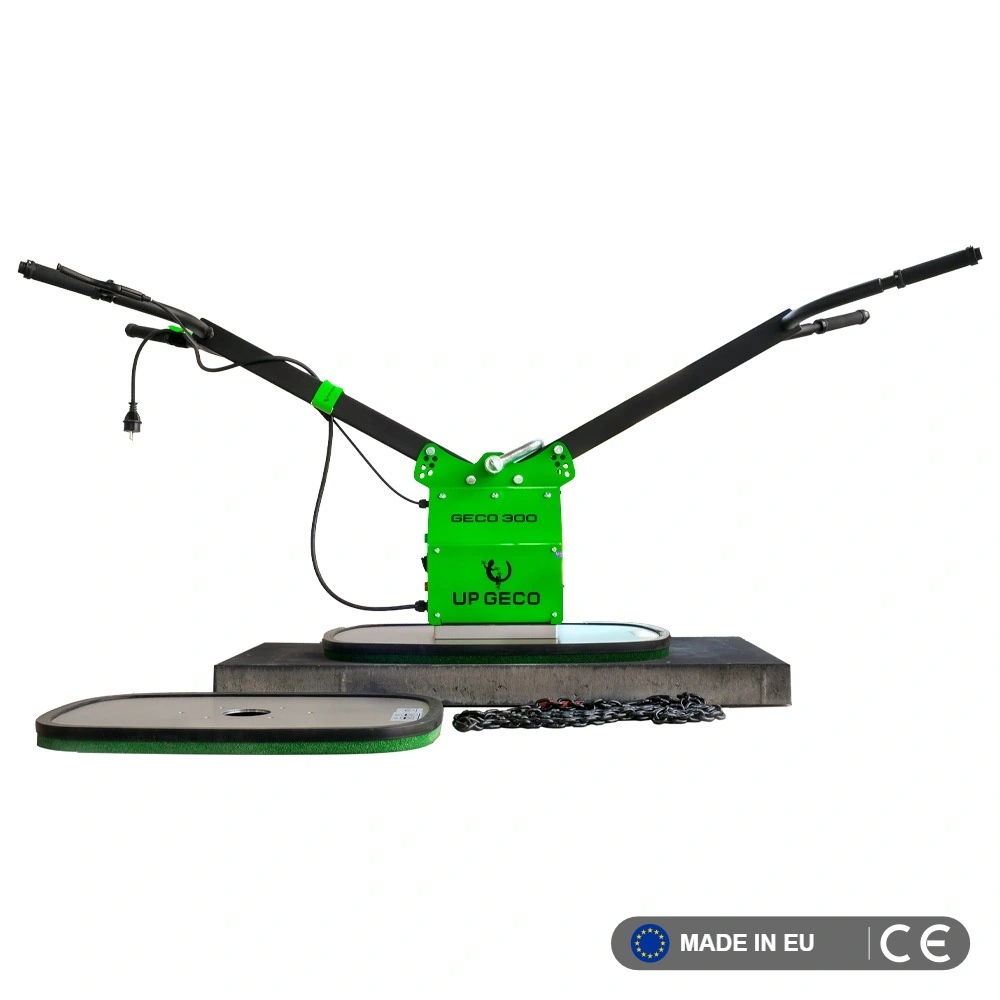

The GECO 300 set includes:
-
GECO 300 vacuum lifter
-
Two suction plates:
-
500x375 mm with a lifting capacity of 150 kg
-
660x500 mm with a lifting capacity of 300 kg
-
-

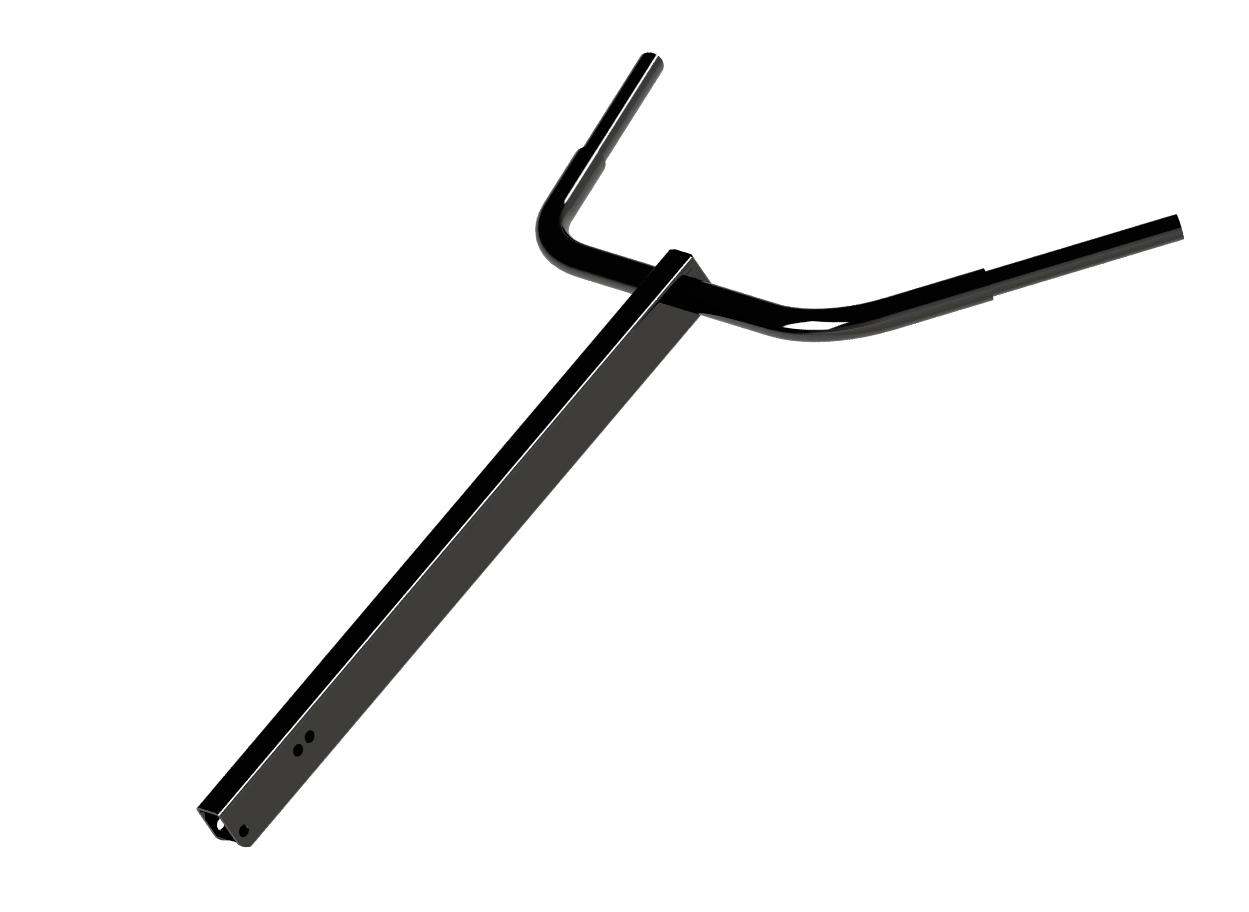

Two ergonomic handles
-
Load securing chain
-
Suction release lever
-
Power cord
-
Long shackle
-
Velcro straps for cable organization
Advantages of the GECO 300 vacuum lifter:
- The lightest vacuum lifter on the market – only 18 kg
- Ultra-fast grip and release – gripping time 0.5 s, release 0.3 s
- Handles various materials – concrete, granite, sidewalk, patio slabs, curbs
- Compatible with UP GECO accessories
- 1850 W turbine – vacuum 35 kPa, suitable for porous materials
- Work ergonomics – adjustable arms fit the operator's height
- Safety – reduces risk of back injuries and accidents
- Time and cost savings – automates material handling
- Reinforced handles – designed to lift elements up to 300 kg
- Simple one-person operation – just hang the device on a hook, turn it on and grip the slab
- Quick lifting – grip in 1 second
- Easy operation – release via handle buttons
- High safety – compliant with EN 13155, spinal protection
- Practicality – speeds up work, reduces strain and improves ergonomics
- Reliability – vacuum-based, lifts concrete, stone, porcelain elements
- Lightweight and user-friendly
Technical specifications:
| Parameter | Value |
|---|---|
| Model | GECO 300 |
| Weight | 18 kg |
| Voltage | 230V |
| Turbine power | 1850 W |
| Vacuum | 35 kPa |
| Gripping time | 0.5 s |
| Release time | 0.3 s |
Why choose GECO 300?
- Handles highly porous materials – perfect for paving stones, porcelain tiles, stone, and precast elements.
- High quality and reliability – solid construction and long service life.
- Simple operation – intuitive and quick to learn.
Where does GECO 300 perform best?
GECO 300 is a versatile device, ideal for applications in various construction and paving industries. It performs well in tasks such as:
- Paving stone installation – fast and safe transport of stones without risk of material damage.
- Terrace and porcelain tile installation – precise placement of even large formats.
- Transporting sidewalk and concrete slabs – significantly facilitates work and improves ergonomics.
- Transporting curbs and precast elements – robust design allows lifting up to 300 kg.
- Granite and stone slab installation – reliable operation even on porous and uneven surfaces.
Frequently Asked Questions (FAQ)
1. Is the GECO 300 suitable for handling uneven surfaces?
Yes! Thanks to its powerful turbine and 35 kPa vacuum, the GECO 300 can effectively lift even porous and rough materials.
2. Does operating the GECO 300 require special training?
No, the device is intuitive to use. A short training session is enough for users to operate it safely and effectively.
3. What voltage is required to operate the GECO 300?
The device operates on standard 230V voltage, making it compatible with most electrical systems.
4. Can the GECO 300 be used outdoors?
Yes, it is suitable for both indoor and outdoor use, provided appropriate operating conditions are maintained.
5. Are additional accessories available?
Yes, the GECO 300 is compatible with a wide range of UP GECO accessories to extend its functionality.
6. How long can the GECO 300 operate continuously?
Continuous operation should not exceed 2 minutes at a time. After that, the lifted slab should be released, and the motor allowed to cool. Excessive temperature negatively affects lifting performance and may cause the device to shut down.
Dimensions of the UP GECO 300 device:
Made in EU
Our products are manufactured in Poland – from the first sketch to final assembly – all in-house at our factory. We mainly use components from European manufacturers.
CE certified product
This product complies with health, safety and environmental protection standards set out in relevant EU directives and regulations. This means it can be legally sold in the European Economic Area (EEA).
| Suction plates | Specifications | ||||
|---|---|---|---|---|---|
| Symbol | Size | 0.25 bar | 0.3 bar | 0.35 bar | 0.40 bar |
| GEC-PLATE_75 | 300 x 300 mm | 70 kg | 80 kg | 95 kg | 110 kg |
| GEC-PLATE_NARROW_70 | 600 x 165 mm | 70 kg | 80 kg | 95 kg | 110 kg |
| GEC-PLATE_100 | 400 x 300 mm | 100 kg | 120 kg | 140 kg | 160 kg |
| GEC-PLATE_150 | 500 x 375 mm | 150 kg | 180 kg | 210 kg | 240 kg |
| GEC-PLATE_NARROW_200 | 780 x 270 mm | 200 kg | 240 kg | 280 kg | 320 kg |
| GEC-PLATE_200 | 600 x 375 mm | 200 kg | 240 kg | 280 kg | 320 kg |
| GEC-PLATE_300 | 660 x 500 mm | 300 kg | 360 kg | 420 kg | 480 kg |
