Kerb Installation with the UP GECO Adjustable Suction Plate
Kerb Installation with the UP GECO Adjustable Suction Plate
Designed for kerbs 12–15 cm wide. Angle adjustment 90–180°. Lifting capacity up to 200 kg. Steel construction with powder coating, tool-free mounting on GECO 200 vacuum lifter.
Where does the kerb suction plate excel?
Building pedestrian and road edges
The suction plate speeds up and improves precision when laying kerbs along roads, paths, and squares.
Work near retaining walls
90–180° angle adjustment enables work in locations where conventional equipment falls short.
Laying along walls and edges
The operator sets the working angle to suit site conditions – no adapters or extensions needed.
Finishing work
Where precision and consistent placement are critical – the plate minimises mechanical contact with precast surfaces.
Mounting the suction plate on the GECO 200 lifter
Invert the lifter
Carefully place the GECO 200 lifter in an inverted position, bottom side up, on a stable surface.
Clean the seal
Before assembly, clean the seal (element 13). It must be dry and free of contamination – this ensures a proper seal.
Position the suction plate
Place the suction plate (element 7) on the mounting plate (element 3). The seal must be positioned between them.
Tighten the screws
Fasten the suction plate with ISO 7380 M8×20 screws (element 14) to a torque of 23 Nm.
How to use the kerb suction plate
Set the working angle
Adjust the plate angle between 90–180° to suit the installation conditions – alongside a wall, retaining wall, or pavement edge.
Activate and lift the kerb
Activate the lifter with the button. Lower the device onto the kerb – the element is automatically gripped by the suction plate.
Position and release suction
Move the kerb to the target position, then press the lever next to the handle to release the suction and set down the element.
Adjustable Suction Plate for Kerbs – product

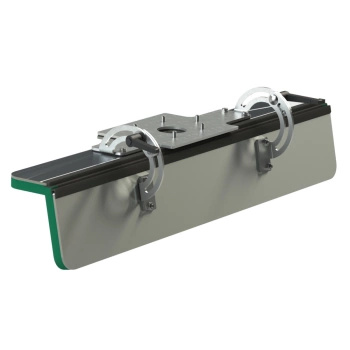

Adjustable Suction Plate for Kerbs max 120/200 kg
- Brand: UP GECO
- Series: GECO 200
- Lifting capacity: 120 / 200 kg
- Angle adjustment: 90–180°
- Kerbs: 12–15 cm width
- Construction: Steel with powder coating
- Warranty: 1 year manufacturer
- EAN: 5903314801477
Frequently Asked Questions
What kerb width is the UP GECO suction plate designed for?
The suction plate is optimally suited for kerbs with a width of 12–15 cm.
What is the maximum lifting capacity?
Up to 120 kg in the standard version and up to 200 kg in the reinforced version, depending on the GECO 200 configuration.
Does mounting the suction plate require tools?
The operator can change the attachment independently in a few minutes, without additional adapters or extensions.
What is the angle adjustment range?
The mechanism allows continuous angle adjustment between 90–180°, making it easier to work at pavement edges, walls, and retaining walls.
What warranty does the UP GECO suction plate carry?
The manufacturer provides a 1-year warranty from the date of purchase, covering repair or replacement of equipment with courier collection from your address.
Order the Adjustable Suction Plate for Kerbs
Steel construction, 90–180° angle adjustment, lifting capacity up to 200 kg. 1-year manufacturer warranty.
