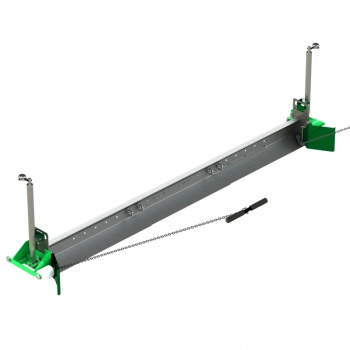

GECO L4,7 Screeding Tool - Professional Surface Profiling Tool

The GECO L4,7 screeding tool is an innovative, professional device designed for precise leveling and preparation of the ground for laying paving surfaces. With its modular design and durable materials, the GECO L4,7 ensures the highest finishing quality and significantly accelerates the ground preparation process.

Key Features of the GECO L4,7 Screeding Tool:

• Modular Design: Three main modules and two extension modules allow for adjustable working widths from 0.96 to 4.7 meters, making it extremely versatile.
• Height Adjustment: Two trolleys with smooth height adjustment enable lowering the screeding modules by up to 19 cm below the level, ensuring perfect leveling.
• Robust Construction: High-strength S355 steel coated with powder paint guarantees corrosion resistance and longevity.
• Ease of Operation: Chains with handles allow precise guidance and easy handling, even for less experienced users.

Range and Weight:

• Main Modules: 960 mm – 2760 mm, 45 kg
  +1 Extension Module: 1930 mm – 3740 mm, 56 kg
  +2 Extension Modules: 2900 mm – 4720 mm, 67 kg

Set Includes:

Advantages of the GECO L4,7 Profiling Screed:

• Versatility: Ideal for both large and small paving projects.
• Durability: Exceptional material quality ensures longevity and resistance to weather conditions.
• Efficiency: Quick and precise ground leveling saves time and delivers excellent results.
• Ease of Use: Intuitive width and height adjustment enable hassle-free operation.

What are the benefits of using the GECO L4,7 profiling screed?
The GECO L4,7 screed allows precise ground leveling, significantly enhancing the durability and aesthetics of the laid surface. Its solid construction ensures corrosion resistance and long-lasting performance.

Is the GECO L4,7 screed suitable for large paving projects?
Yes, thanks to its modular design and adjustable width, the GECO L4,7 screed is ideal for both large and smaller paving projects.

What materials can be used with the GECO L4,7 screed?
This screed is designed for spreading paving materials such as sand, gravel, or concrete bedding.

Purchasing the GECO L4,7 Profiling Screed:
By choosing the GECO L4,7 profiling screed, you are investing in a tool that ensures maximum efficiency and convenience. Its robust design and innovative technological solutions make it an indispensable part of your equipment.

How Do Paving Screeds Impact the Quality of Paving Stone Installation?

Precision and Evenness of Installation
Paving screeds play a key role in ensuring accuracy and uniformity in laying paving stones. They allow for the even distribution of bedding material and achieving a perfectly flat surface. They also enable control of the substrate's height and slope. Properly used paving screeds help avoid unevenness and depressions caused by insufficient substrate leveling.

In practice:

1. Paving screeds are placed at regular intervals on the substrate.
2. Sand is spread over the substrate and leveled using a special board or screed tool.
3. This preparation ensures the even installation of paving stones, positively affecting their durability, stability, and aesthetics.

Durability and Surface Aesthetics
Well-prepared substrate with paving screeds greatly influences the durability and appearance of the finished surface.

• Durability:
  Even load distribution reduces the risk of cracks and mechanical damage.
  Solid groundwork enhances resistance to weather conditions and heavy use.
• Aesthetics:
  A smooth and even surface gives the area a neat and organized appearance.

Types of Paving Laths
Classic Laths
Classic paving laths are the basic tool for profiling substrates for paving surfaces. They are relatively simple in construction but very effective in leveling surfaces.

Mechanical Profiling Laths
Mechanical profiling laths offer more advanced solutions. They come in different types, such as:

• Heavy-duty scraping blades
• Laths with additional roof connector

Mechanical Profiling Laths with Roof Connector
These laths are built from elements typical of classic models, but additionally feature a roof module, which ensures a variable work range and smooth adjustment of the height and width of the blade. They allow for changing the angle of the roof connector, enabling profiling and smoothing of the upper layer of the sub-base.

Mechanical profiling laths with a roof connector are used not only for preparing the terrain for laying surfaces but also for creating sand or sand-cement bedding on parking lots, squares, driveways, and roads. They can also be successfully used for profiling linear drainage, such as roof runoff or trough drains.

How to Profile the Substrate Using the GECO L4,7 Paving Lath?
It is hard to imagine carrying out paving work without using the right tools. The GECO L4,7 paving lath has a direct impact on the precision of the task. It allows for proper shaping of the substrate to match its form to the specific application.

Benefits of Using the GECO L4,7 Paving Lath
Using the GECO L4,7 lath allows for efficient and effective bedding preparation for various types of surfaces, including sidewalks, terraces, parking lots, etc. Profiling can be done manually or mechanically. The efficiency of the work largely depends on selecting the right lath.

Summary
The GECO L4,7 paving lath is a tool that will significantly improve the quality and efficiency of your paving work. Choose the GECO L4,7 from our offer and enjoy the durability, precision, and aesthetics of the finished surface. Invest in professional tools so that your projects are completed quickly, efficiently, and with excellent results.

Check out the full range of our products on the UP GECO website and choose the best tool for you. The GECO L4,7 paving lath is the answer to every question and the ideal solution for your needs!
